Product Description
You want to add motorization to your home, but you already have existing blinds, shades or draperies that you want to keep. The answer might be retrofitting your current window covering. Hardwiring your motorized blinds is an option if you want to avoid the hassle of regularly recharging the blinds.
Mini Motor for rollup shades 1″
Installation is simple, with no drill required and can be completed in just 5 minutes.
Motorized 12v tubular motor ey1612 motor blinds/shades add on motor for roller shades
25mm tube roller shade motor is very small and would only work on the very smallest blinds window shade tubes for 1in,(25mm) or 1-1/8in.(28mm) OD shade tube.
Retrofit motors in use your house current and a 12 DC adapter, not working for 8 AA batteries or 8 D batteries.
Upper the blinds at the push of a button

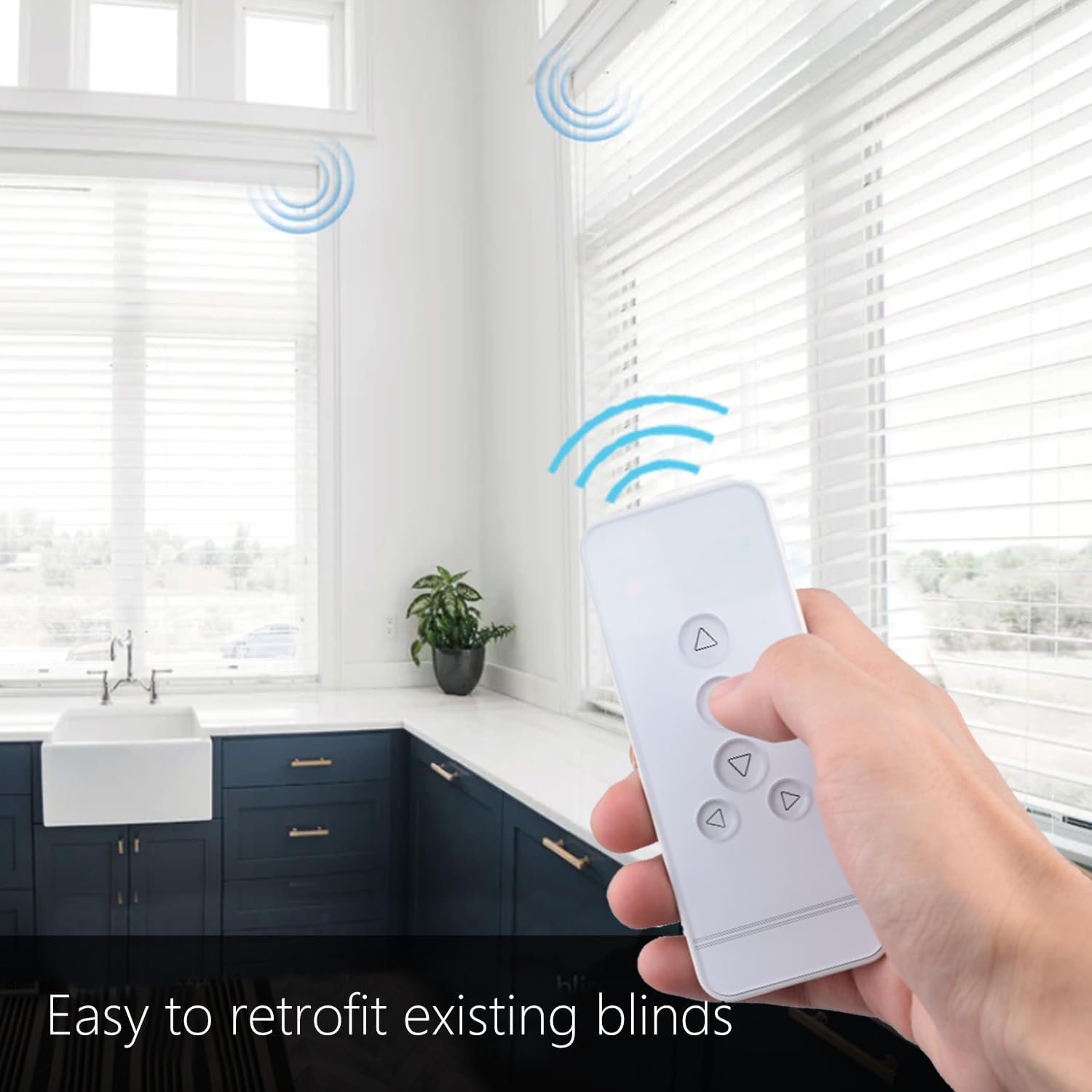

Our multi-channel remote is designed for convenient usage. It’s easy to pair with our motorized blinds and curtain tracks and allows you to easily control each blind separately or control them as a group with just one click.
You can set Open and Close limits, and favorite positions for your blinds with the push of a button
Remote controlled shade for motorhome
Used the remote controlled tubular motor to create a powered privacy/sun visor blind for the windshield for motorhome
A good choice replacement for the original electric motors
APP controlled blinds
DIY motor for pulling shades up app connect
Using the Bond Bridge to connect it to Alexa to open and close using voice control set a schedule to open and close at a specific time of the day.
12V motor remote control with voice control
Enjoy the freedom of smart shading. wireless blind tubular motor motorization range is designed for all types of shades, blinds, and draperies.
Child safety blinds
In addition to being safer for babies and children, remote control options are also a convenient way to adjust shades or blinds.
Multi channel remote blinds
Multi channel remote which has been very helpful for controlling many of them at once
All shades on the same group channel will operate simultaneously.
Works on Coolaroo manual with some modification
Change aluminum rod, used carpet tape to reattach fabric to the new rod
Mounting bracket is not fit in the existing holes that held manual crank wand brackets, easy to drill new holes into the valance

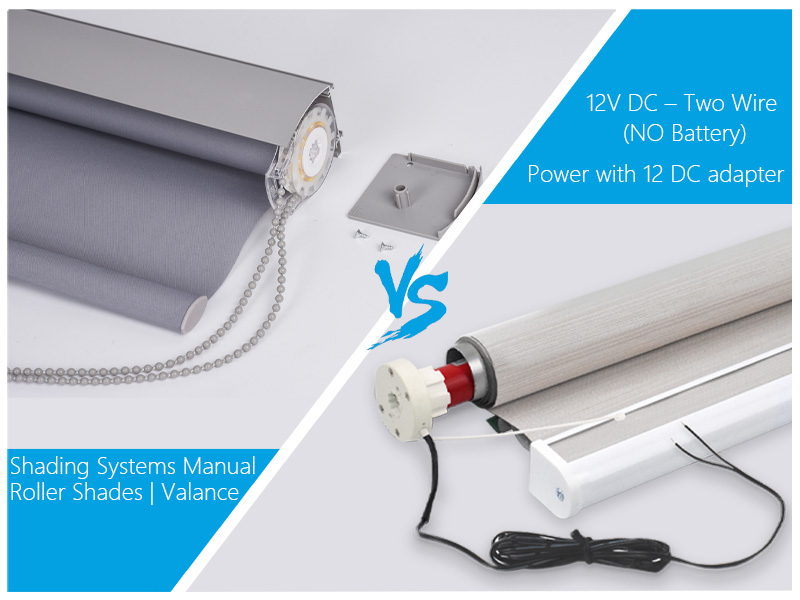

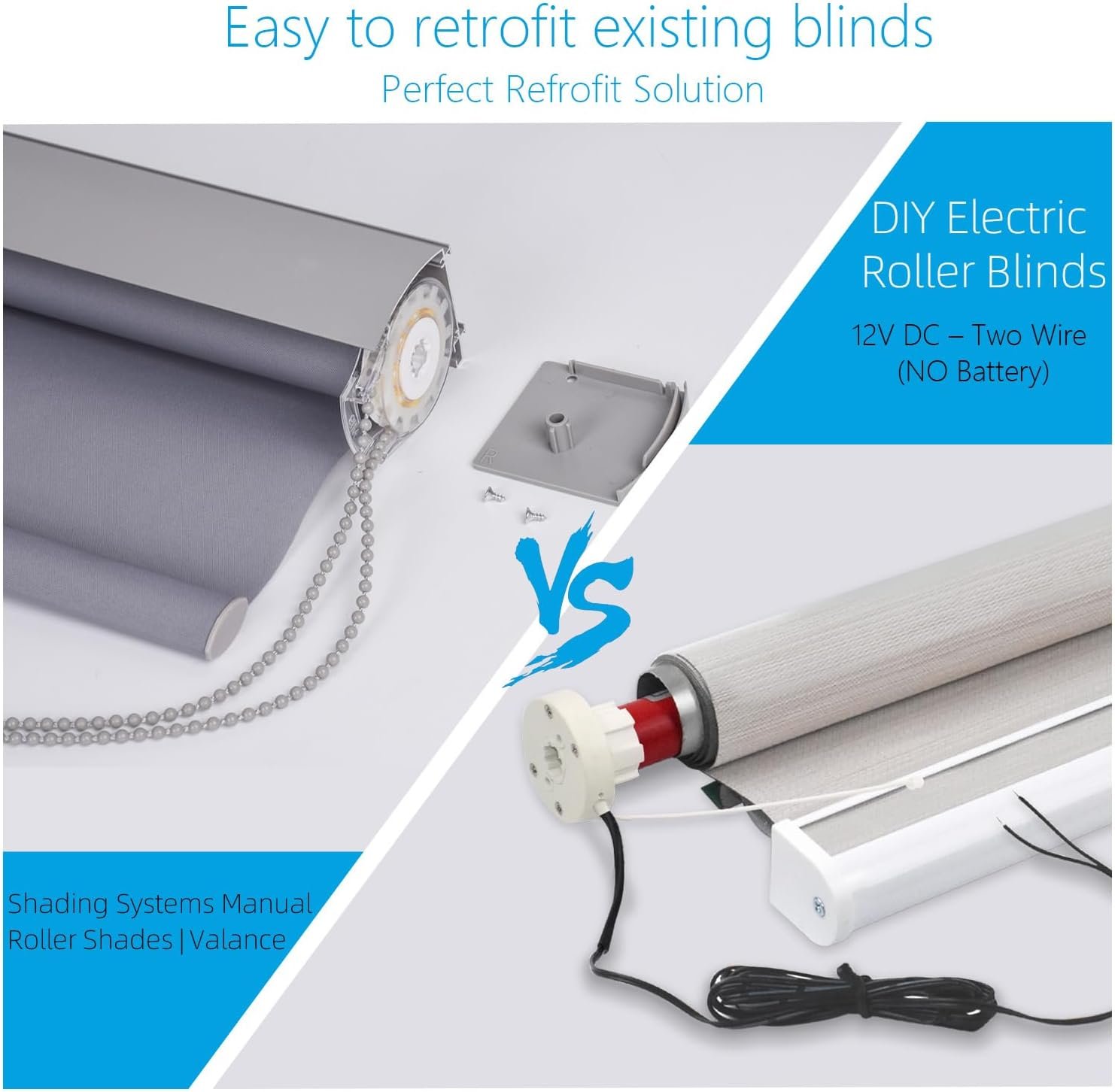

Great for DO it yourself courtain automation The easy way to retrofit your roller blinds with motorisation
If you are still love the look of your window treatments, but not their (lack of) functionalityWe can motorize most existing blinds and shades, By adding a motor to the tilt of blinds and the lift of roller shades, you can add new life and functionality to what you already have
Unclip your blind and remove your chain drive
Screw off the Chain side bracket, Do not need to do anything of the plug side bracket
No need the chain drive and ball chain Mechanism anymore
Be sure chosen crown and drive adapters must close fitting with your shade system,If you are not sure the one you get on hand is working with your system or not, please take photos, Seller service will be 24 hours there
Accurate measurement for ID&OD
Step 1) Please measure inside dimension to the slot side(ID), as well as the outside dimension without any ribs or slot(OD)Step 2) Please measure the Chain side bracket to verify if additional accessories are required
Insert your motor, Fit required crown, drive and bracket adapters
Do not need the chain drive and ball chain Mechanism anymoreBe sure chosen crown and drive adapters must close fitting with your shade system,Be sure to line up your adapter and the tube profile so it slides in easily. Your motor will be flush with the tube when inserted correctly
Program the motor with remote control
Set up your controls so you can start using your motorised blinds.Remember to charge battery motor before you insert it
Add motor to existing blinds
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars
128
4.2 out of 5 stars
74
4.4 out of 5 stars
3
4.0 out of 5 stars
102
4.3 out of 5 stars
379
4.0 out of 5 stars
1
4.0 out of 5 stars
102
Price
$15.99$15.99
$69.89$69.89
$47.88$47.88
$59.89$59.89
$93.99$93.99
$6.99$6.99
$62.99$62.99
Working Tube Diameter
–
Φ1.5 in.(38mm)
Φ1.5 in.(38mm)+ Φ1-1/8 in.
Φ1.5 in.(38mm)
Φ1.5 in.(38mm)
–
Φ1 in.(25mm)-Φ1-1/8 in.(28mm)
Motor Diameter
–
Φ25mm
Φ25mm
Φ25mm
Φ25mm
–
Φ16mm
Motor Options
12V 2A AC Adapter Charger
DC24 Power supply
–
DC12V
DC7.4V
–
DC12V
Max Lifting Capacity
–
12 lbs.
–
7 lbs.
8.8 lbs.
–
4.4lbs.
Motor Limit Type
12V 2A AC Adapter Charger
24V Power Supply
1.5”& 1 1/8″ roller shade
DC12V Switch Control
8.4V blinds charger
–
DC12V Switch Control
Built-in Radio
–
Rf433
–
Mechanical
Rf433
–
Electric, No RF
The wheel was a little loose, what’s the solution?
If putting tape around was not very successful the blind slipped better to put a small screw to the drive to maintain the drive fitted
What power is required for electric blinds?
Pre-Wiring for low voltage (12 or 24 Volt DC) and line voltage (110 Volt AC) motorized window treatments is an important process in the planning stage of a new building project and must be considered before the walls are closed
Can I make my blinds motorized?
If your blinds use a pulley system to raise and lower them, some kits are as easy as attaching a motor to your wall below the blinds. This motor pulls the cord to raise or lower the blinds. It can also be outfitted to open and close them.
Two remotes to one motor? i want to pair two remotes to one shade, is this possible?
Yes. This is possible. Just set up the second remote exactly the same way you do the first.
Will it work on coolaroo 6×6 outdoor shades 30mm tube?
Yes, with modification. Google the following term and there are step by step instructions “coolaroo roller shades brandon”

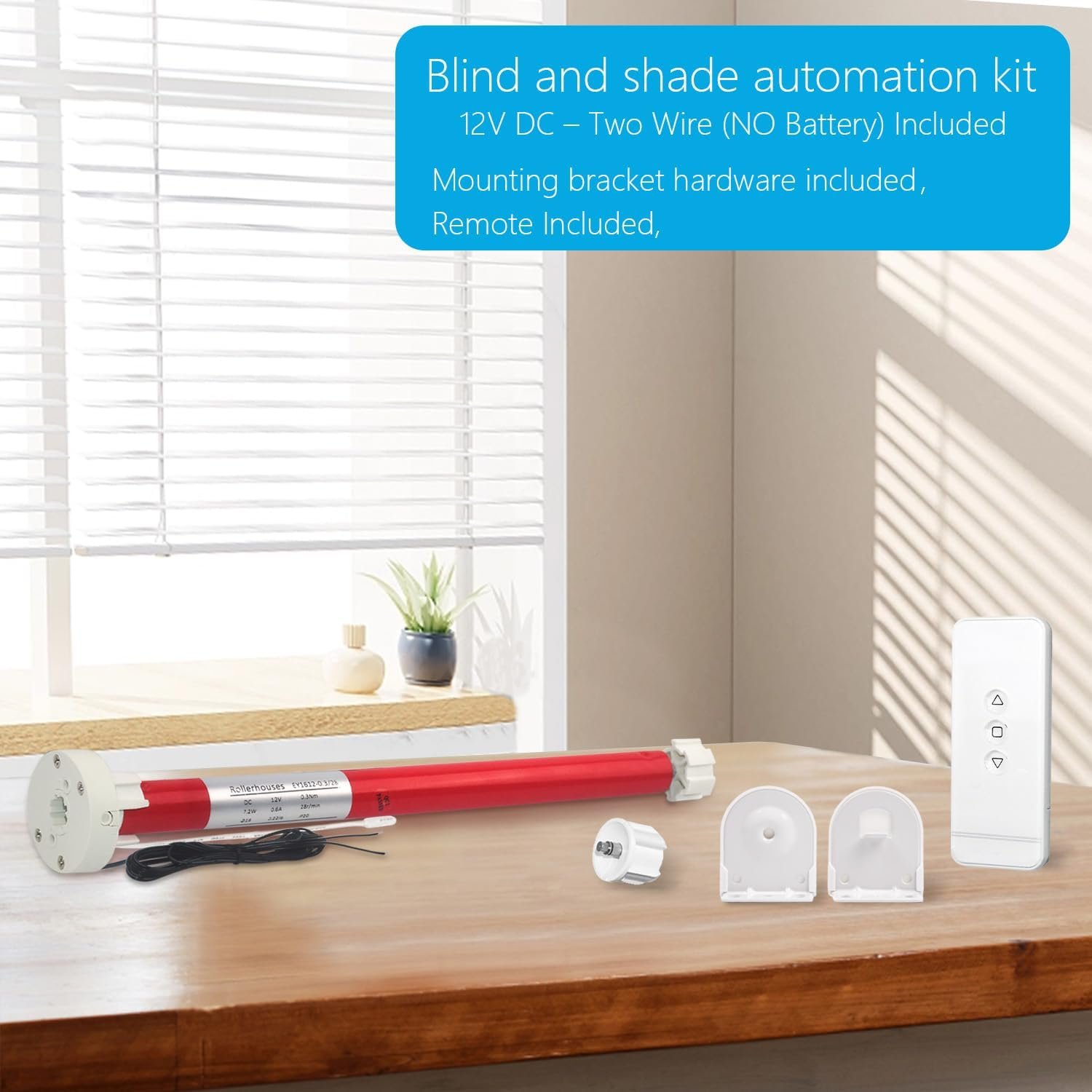

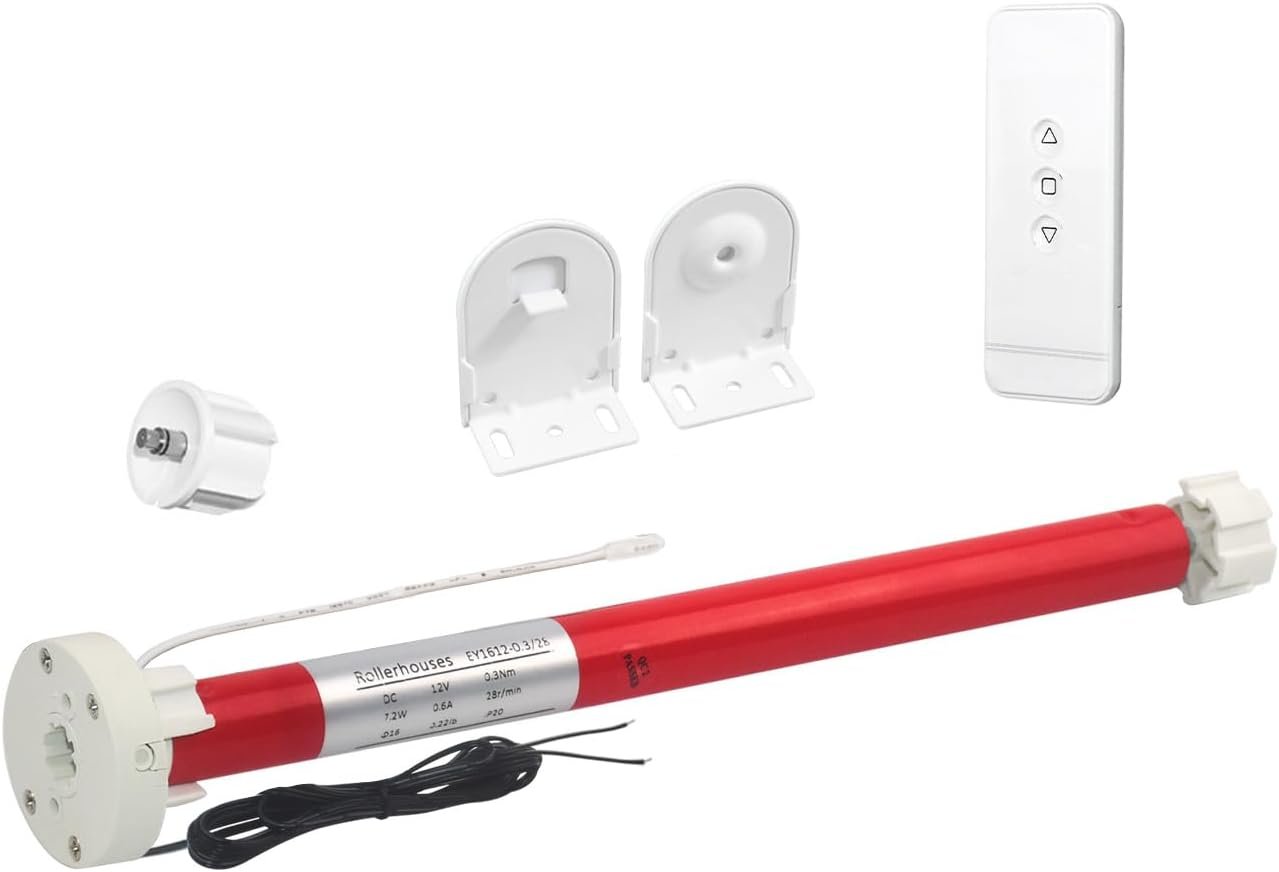

12V BLIND MOTOR: Mini blind motor, build with 433MHz rolling code RF signal for the remote control,can be remote control or wall mounted transmitter directly. Provided single channel remote control for raise/lowering (1 per blind). Additional purchase required for 5 and 15 channel remote controls
HARD WIRE ELECTRIC BLINDS: Power with DC 12V 2A Power Adapter Included, and plugs into 110 volt, wired connection. Achieved the purpose of 12 volt tubular motor with remote lift and lowering in difficult to reach locations

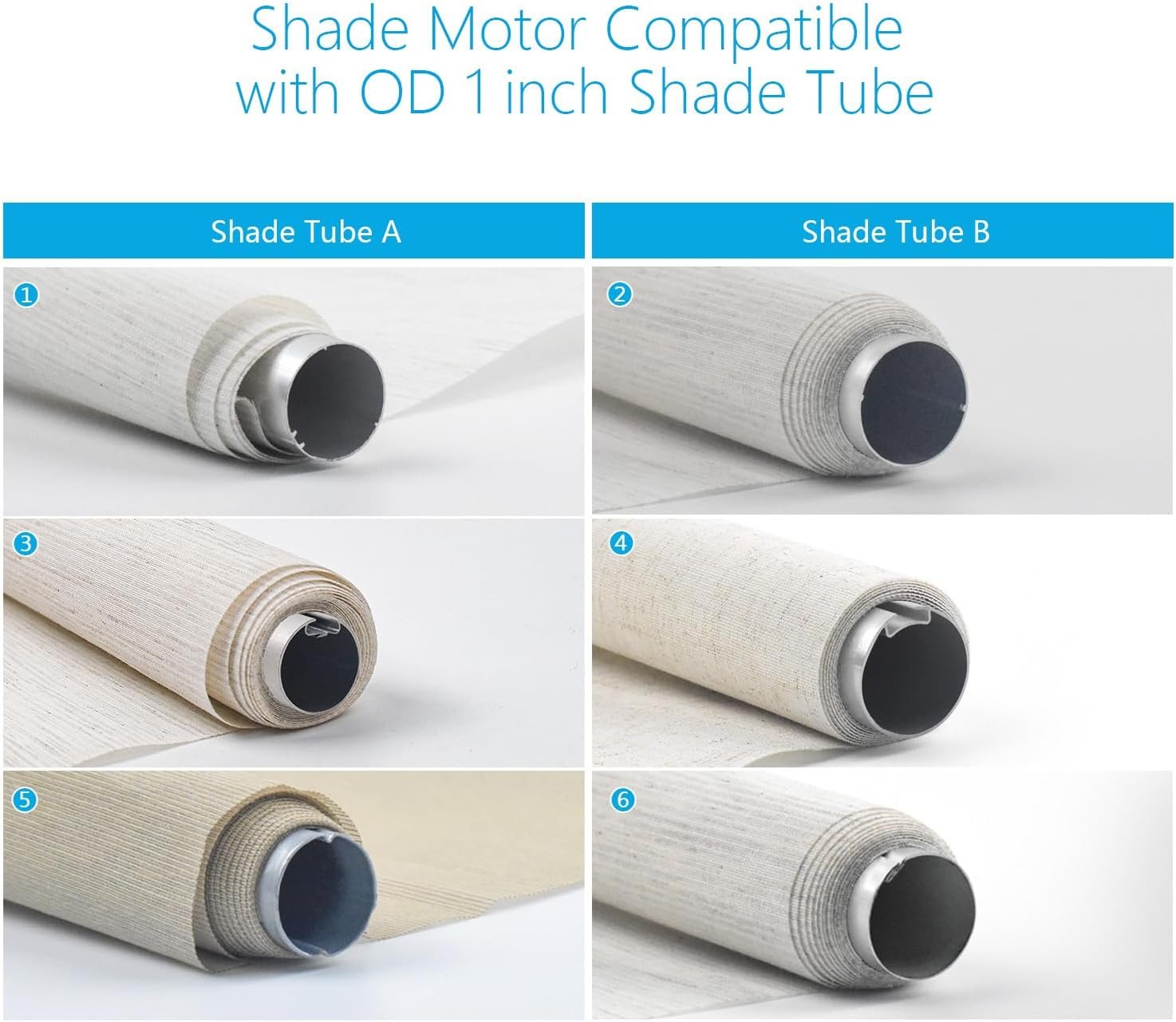

Working with 1in,& 1-1/8in, OD Shade tube: Remote control mini blinds with the electric shade motor, Providing with two size 1” and 1-1/8”of rubber wheels, remote, mounting bracket for 1 in, shade tube included MOUNTING BRACKET FOR 1-1/8 INCH SLOT SHADE please place the order for this link https://www.amazon.com/dp/B0B4QVHBKG
RETROFIT 12V REMOTE CONTROL TUBULAR MOTOR: Motor for manual blinds,Idea for mini blinds window, easy to change Motorized / Remote Control Blinds and Shades. Designed for window shades blind motor with a small tube like 0.75 inches, 1” and 1-1/8”( Shows in the advertised pictures)
QUIET RUNNING: Capable of handling shades as large as 78 inch x 78 inch, lift capacity with standard adapters: 4.4 lb (2 Kg).Pair with additional hub for smartphone operation
Customers say
Customers like the functionality and value of the electric motor. They mention it works well and exceeds their expectations. However, some customers have mixed opinions on the ease of programming.
